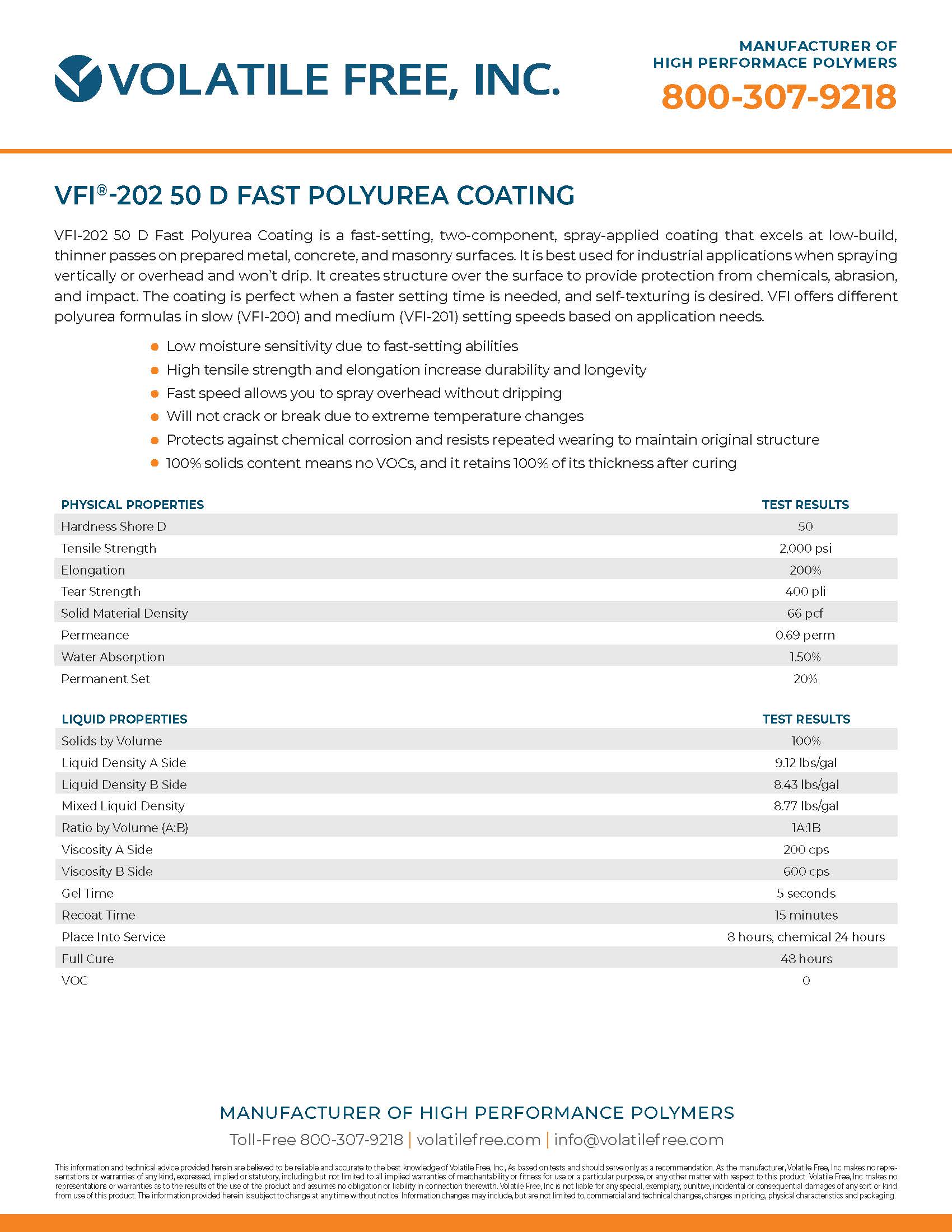

VFI-202 50 D Fast Polyurea Coating

VFI-202 50 D Fast Polyurea Coating is a fast-setting, two-component, spray-applied coating that excels at low-build, thinner passes on prepared metal, concrete, and masonry surfaces. It is best used for industrial applications when spraying vertically or overhead and won’t drip. It creates structure over the surface to provide protection from chemicals, abrasion, and impact. The coating is perfect when a faster setting time is needed, and self-texturing is desired. VFI offers different polyurea formulas in slow (VFI-200) and medium (VFI-201) setting speeds based on application needs.

Physical Properties	Test Method	Test Results
Shore Hardness	ASTM D2240	50 D
Tensile Strength	ASTM D412	2,000 psi
Elongation at Break	ASTM D412	200%
Tear Strength (Die C)	ASTM D624	400 pli
Abrasion Resistance	ASTM D4060	N/A
Impact Resistance	ASTM D256	N/A
Water Absorption	ASTM D471	1.50%
Linear Shrinkage	N/A	N/A
Permeance	N/A	0.69 perm
Adhesion Strength (prepared concrete/steel)	N/A	N/A
Color	N/A	Black

Physical Properties

Test Method

Test Results

Shore Hardness

ASTM D2240

50 D

Tensile Strength

ASTM D412

2,000 psi

Elongation at Break

ASTM D412

200%

Tear Strength (Die C)

ASTM D624

400 pli

Abrasion Resistance

ASTM D4060

N/A

Impact Resistance

ASTM D256

N/A

Water Absorption

ASTM D471

1.50%

Linear Shrinkage

N/A

Permeance

N/A

0.69 perm

Adhesion Strength (prepared concrete/steel)

N/A

Color

N/A

Black

Liquid Properties	Test Method	Test Results
Solids by Volume	ASTM D2697	100%
Mix Ratio by Volume	N/A	1A:1B
Weight per Gallon A Side	ASTM D1475	9.12 lbs/gal
Weight per Gallon B Side	ASTM D1475	8.43 lbs/gal
Viscosity A Side	ASTM D2196	200 cps
Viscosity B Side	ASTM D2196	600 cps
Gel Time	N/A	5 seconds
Tack Free Time	N/A	N/A
Cure to Handle	N/A	8-24 hours
Recoat Time	N/A	15 minutes
Full Cure Time	N/A	Full Cure
Volatile Organic Compounds	N/A	0

Liquid Properties

Test Method

Test Results

Solids by Volume

ASTM D2697

100%

Mix Ratio by Volume

N/A

1A:1B

Weight per Gallon A Side

ASTM D1475

9.12 lbs/gal

Weight per Gallon B Side

ASTM D1475

8.43 lbs/gal

Viscosity A Side

ASTM D2196

200 cps

Viscosity B Side

ASTM D2196

600 cps

Gel Time

N/A

5 seconds

Tack Free Time

N/A

Cure to Handle

N/A

8-24 hours

Recoat Time

N/A

15 minutes

Full Cure Time

N/A

Full Cure

Volatile Organic Compounds

N/A

Application Requirements

The material should be brought to a minimum temperature of 65°F before use. Apply the coating at a minimum of 30 mil passes. When spraying over 100 mils, you must do multiple passes to avoid excessive amounts of heat. When applying additional coats, you must stay within the 15-minute open window. VFI recommends applying a UV-stable topcoat once VFI-202 has fully cured for complete UV stability. Coated surfaces can be placed into service after a minimum cure of 24 hours.

Storage/Shelf Life

Store between 60°F – 90°F in a clean, dry building. The shelf life of unopened containers is 12 months after the date of manufacture. Once opened, it should be used immediately. If you are storing after opening, the container must be nitrogen purged.

Mixing

Before spraying, premix the Poly (B side) until uniform.

Surface Preparation

All surfaces should be clean, dry, and free of dirt, dust, and debris. Use a pressure washer on hard-to-clean surfaces to remove grease and oil. Treat mildew, fungus, and algae spots with a concentrated chlorine solution. Remove all loose paint, rust, and scale by sandblasting or grinding. Make any needed repairs to the surface to ensure the coating performs to the desired effect. Concrete surfaces must be aged a minimum of 28 days before application.

Equipment

Apply the material to the prepared surface using a plural component high-pressure spray rig. The spray equipment should be capable of spraying at 2,500 psi and temperatures between 135°F-150°F.

Cleanup

VFI recommends cleaning application equipment with xylene or MEK. When flushing out spray lines, use VFI-8005 Pump Flush to remove all material from the hoses.

Precautions

VFI-202 contains isocyanate, which is irritating to the skin and toxic if inhaled as particulate matter. Avoid prolonged breathing of vapors and repeated skin contact. Do not add foreign material to the product. Use only with adequate ventilation. See Safety Data Sheet for complete safety information.
