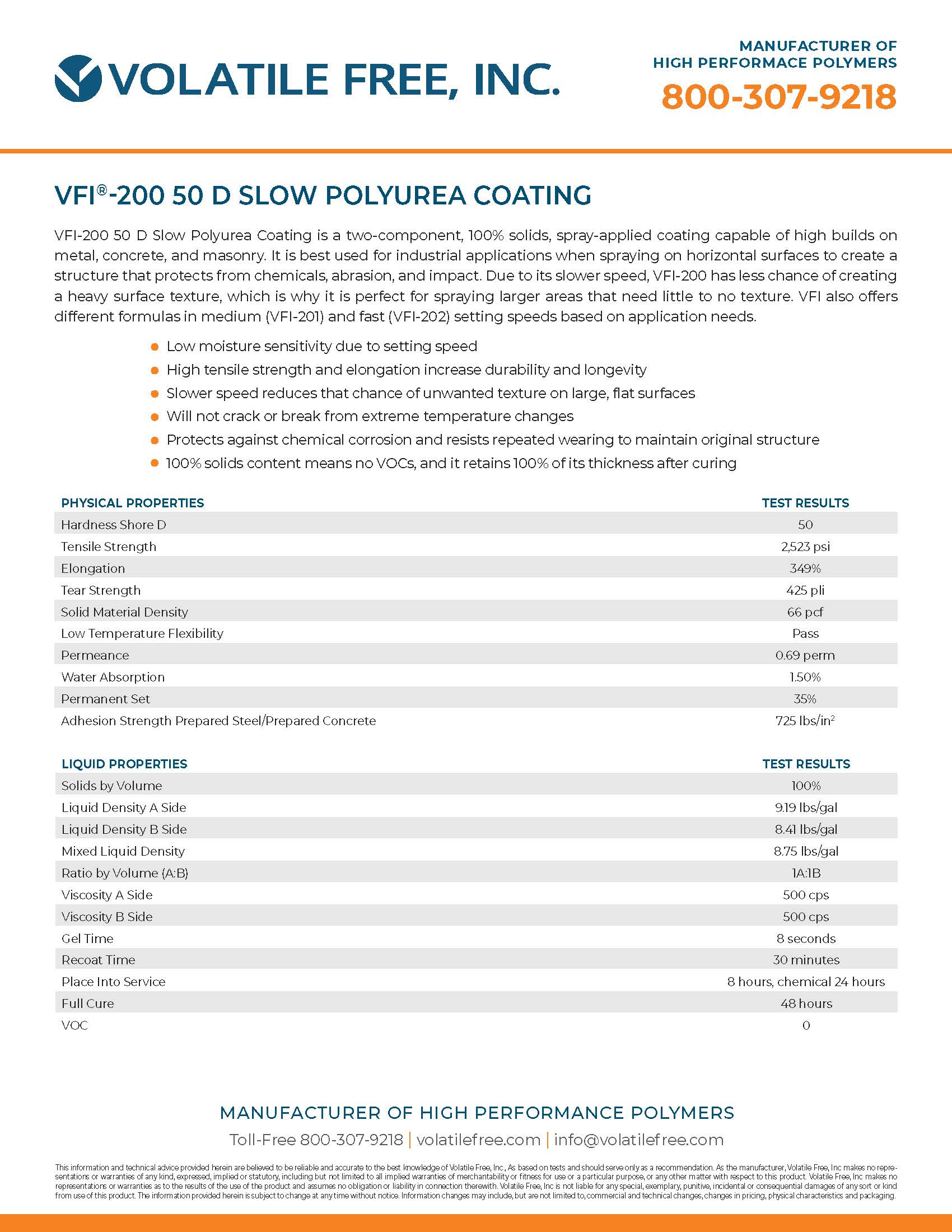

VFI-200 50 D Slow Polyurea Coating

VFI-200 50 D Slow Polyurea Coating is a two-component, 100% solids, spray-applied coating capable of high builds on metal, concrete, and masonry. It is best used for industrial applications when spraying on horizontal surfaces to create a structure that protects from chemicals, abrasion, and impact. Due to its slower speed, VFI-200 has less chance of creating a heavy surface texture, which is why it is perfect for spraying larger areas that need little to no texture. VFI also offers different formulas in medium (VFI-201) and fast (VFI-202) setting speeds based on application needs.

Physical Properties	Test Method	Test Results
Hardness Shore D	ASTM D2240	50 D
Tensile Strength	ASTM D412	2,523 psi
Elongation	ASTM D412	349%
Tear Strength	ASTM D624	425 pli
Solid Material Density	N/A	66 pcf
Low Temperature Flexibility	N/A	Pass
Permeance	N/A	0.69 perm
Water Absorption	N/A	1.50%
Permanent Set	N/A	35%
Adhesion Strength Prepared Steel/Prepared Concrete	N/A	725 lbs/in2

Physical Properties

Test Method

Test Results

Hardness Shore D

ASTM D2240

50 D

Tensile Strength

ASTM D412

2,523 psi

Elongation

ASTM D412

349%

Tear Strength

ASTM D624

425 pli

Solid Material Density

N/A

66 pcf

Low Temperature Flexibility

N/A

Pass

Permeance

N/A

0.69 perm

Water Absorption

N/A

1.50%

Permanent Set

N/A

35%

Adhesion Strength Prepared Steel/Prepared Concrete

N/A

725 lbs/in2

Liquid Properties	Test Method	Test Results
Solids by Volume	ASTM D2697	100%
Liquid Density A Side	ASTM D2939	9.19 lbs/gal
Liquid Density B Side	ASTM D2939	8.41 lbs/gal
Mixed Liquid Density	ASTM D2939	8.75 lbs/gal
Ratio by Volume (A:B)	N/A	1A:1B
Viscosity A Side	ASTM D2196	500 cps
Viscosity B Side	ASTM D2196	500 cps
Gel Time	N/A	8 seconds
Recoat Time	N/A	30 minutes
Place Into Service	N/A	8 hours, chemical 24 hours
Full Cure	N/A	48 hours
VOC	N/A	0

Liquid Properties

Test Method

Test Results

Solids by Volume

ASTM D2697

100%

Liquid Density A Side

ASTM D2939

9.19 lbs/gal

Liquid Density B Side

ASTM D2939

8.41 lbs/gal

Mixed Liquid Density

ASTM D2939

8.75 lbs/gal

Ratio by Volume (A:B)

N/A

1A:1B

Viscosity A Side

ASTM D2196

500 cps

Viscosity B Side

ASTM D2196

500 cps

Gel Time

N/A

8 seconds

Recoat Time

N/A

30 minutes

Place Into Service

N/A

8 hours, chemical 24 hours

Full Cure

N/A

48 hours

VOC

N/A

Application Requirements

The material should be brought to a minimum temperature of 65°F before use. Apply the coating at a minimum of 30 mil passes. When applying additional coats, you must stay within the 30-minute open window. The slower speed of VFI-200 allows for easier recoating. VFI recommends applying a UV-stable topcoat once VFI-200 has fully cured for complete UV stability. Coated surfaces can be placed into service after a minimum cure of 24 hours.

Storage/Shelf Life

Store between 60°F – 90°F in a clean, dry building. The shelf life of unopened containers is 12 months after the date of manufacture. Once opened, it should be used immediately. If you are storing after opening, the container must be nitrogen purged.

Mixing

Before spraying, premix the Poly (B side) until uniform.

Surface Preparation

All surfaces should be clean, dry, and free of dirt, dust, and debris. Use a pressure washer on hard-to-clean surfaces to remove grease and oil. Treat mildew, fungus, and algae spots with a concentrated chlorine solution. Sandblast or grind away any loose paint, rust, and scale. Make any needed repairs to the surface to ensure the coating performs to the desired effect. Concrete surfaces must be aged a minimum of 28 days before application.

Equipment

Apply the material to the prepared surface using a plural component high-pressure spray rig. The spray equipment should be capable of spraying at 2,500 psi and temperatures between 135°F-150°F.

Cleanup

VFI recommends cleaning application equipment with xylene or MEK. When flushing out spray lines, use VFI-8005 Pump Flush to remove all material from the hoses.

Precautions

VFI-200 contains isocyanate, which is irritating to the skin and toxic if inhaled as particulate matter. Avoid prolonged breathing of vapors and repeated skin contact. Do not add foreign material to the product. Use only with adequate ventilation. See Safety Data Sheet for complete safety information.
